Wire Straighteners and Straightening Rollers

Wire straighteners are designed to remove any bends, irregularities, and cast memory left from the coil in the material that is being processed. This straightening process ensures that the final product will be consistent and free from defects.

Wire straighteners are made in a variety of versions, in order to accommodate different requirements that may need to be filled. The main items that will dictate the category of straighteners are:

• Product being manufactured
• Size of wire
• Type of wire
• Speed of Feeding
• Ease of use desired

Wire Straightener - SQ Type Cam lever opening/closing system Maintains previous settings 5, 7, or 9 roller configurations 13, 22, 30, 40, 52, and 80 mm rollers with V-grooves Double roller bearings and hardened steel sleeves Single & double plane configuration
Wire Straightener - SF Type Scissor opening system easy set-up 3 or 5 roller configurations 22 and 30 mm rollers with V-grooves Double roller bearings Single & double plane configurations
Wire Straightener - SC Type Scissor opening system easy set-up 7 or 9 roller configurations 22 and 30 mm rollers with V-grooves Double roller bearings Single plane configuration

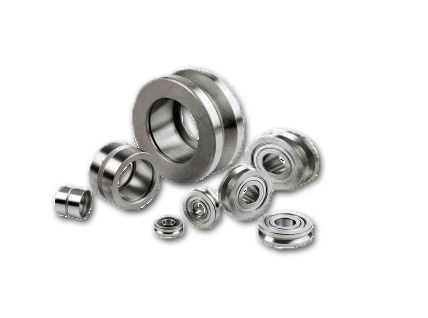

Individual & Replacement Rollers Sealed single and double row roller bearings Hardened steel sleeve roller assemblies Tungsten Carbide sleeve roller assemblies V – U and custom straightening grooves
