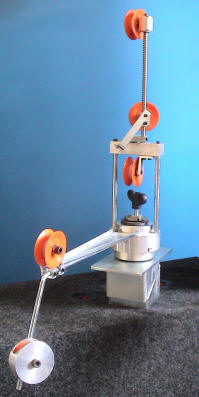

Flyer Pay-Off Systems
Designed to unwind wire and cable from a static spool or reel using a flyer arm pay-off system with ease and simplicity.
SPF - 450/800 Flyer Pay-off System
- With pneumatic, electromagnetic or manually adjustable brake
- Reel is independent from flyer mount
- For multi-wire, with and without separation, as well as for single wire
- Wire tensions from 2 - 30 lbs
- Grooved ceramic inserts in light weight guiding pulleys
- Easily customized for various applications
- Pivoting flyer support arm allows rapid overhead reel loading
- Quick removal and replacement of reel for greater machine production
|
|
VSF - 630/1250P/M: Extra Heavy Duty Flyer
- For reels from 24" - 50� (610 mm - 1250 mm) (on same unit)
- With external, pneumatic tension regulation or simple manual tensioning
- Suitable for sections from 20 � 6 AWG
- Ceramic inserts in light weight guiding pulleys
- Max. conductor diameter 5/32�
- Max linear speed 1320 ft/min
|
 |
SWF - 600-1250D: Heavy Duty Flyer
- For reels 24", 25", 32", 39" and 48� (individual units)
- With disc brake tension regulation
- Tension range 4.5 � 30 lbs
- Ceramic inserts in light weight guiding pulleys
- Max. conductor diameter 5/32�
- Max linear speed 1320 ft/min
|
 |
SRF - 630-800B: Heavy Duty Stress Relief Flyer
- For reels 24", 25", 32", 39" and 48� (610, 630, 800, 1250 mm)
- With bearing tension regulation
- Tension range 0.7 � 3.3 lbs
- Max. conductor diameter 5/32"
- Max linear speed 1320 ft/min
|
SDF - 400�800B: Standard Duty Flyer
- For reels 16", 24", and 32� (400, 630, 800 mm)
- Special arbor locking design
- With bearing brake tension regulation
- Tungsten Carbide eyelets for reduced wear
- Tension range: 0.7 � 3.3 lbs
- Max linear speed 1650 ft/min
|
 |
FWF - 400B: Light Duty Flyer
- For reels up to 16� (400 mm)
- Special arbor locking design
- With bearing brake tension regulation
- Ceramic and Tungsten Carbide contact points
- Tension ranges: 0.1 � 0.7 lbs
- Max linear speed 1000 ft/min
|
 |
SSF � 630 � 800P: Multi-Wire Flyer
- For Reels from 24" - 32" (630 mm - 800 mm)
- With wire separation
- With pneumatic tension regulation
- Tension ranges: 1 - 5 lbs
- Max. linear speed 1000 ft/min
|
 |
